JN22-40.5 Middle voltage earth switch
Product Description JN22-40.5/31.5 Indoor HV Earthing Switch is used for 3 phase rated voltage 40.5kV, AC 50Hz power system , high voltage switchgear with KYN61-405, high voltage electrical equipment maintenance as the use of ground fault protection.
Published in2018-08-20
2603 ViewsDetailed description
Product Description
JN22-40.5/31.5 Indoor HV Earthing Switch is used for 3 phase rated voltage 40.5kV, AC 50Hz power system , high voltage switchgear with KYN61-405, high voltage electrical equipment maintenance as the use of ground fault protection. The switch conforms to the national standard GB1985-2004 " AC high voltage disconnectors and earthing switches" and IEC62271-102.
- Altitude: ≤1000m
- Relative humidity: monthly average ≤90%; daily average: ≤95%
- Earthquake intensity: ≤8 degree
Environment condition
- Ambient temperature: -25ºC~+40ºC- Altitude: ≤1000m
- Relative humidity: monthly average ≤90%; daily average: ≤95%
- Earthquake intensity: ≤8 degree
Technical Data
|
Rated voltage (kV)
|
35
|
|
|
Max. voltage (kV)
|
40.5
|
|
|
Rated short-time withstand current (thermal stability) (kA)
|
31.5
|
|
|
|
4
|
|
|
Rated short-circuit making current (kA)
|
80
|
|
|
Rated peak withstand current (dynamic stability) (kA)
|
80
|
|
|
Inter-pole center distance (mm)
|
350, 400
|
|
|
Rated insulation level
|
1min.PF withstand voltage (kV)
|
95
|
|
Lightning impulse withstand voltage (kV)
|
185
|
|

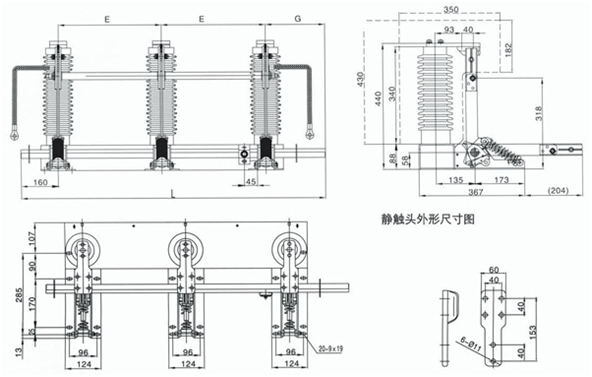

Outline Dimension
