40.5kV Solid Insulated Switchgear/RMU

Product Advantages Solid Insulation Shielded layer of conductive material makes the surface at earth potential everywhere; it is accidently touchable providing safety features for operator. This shielded solid insulated switchgear, which is complete

Published in2018-08-20

6013 Views

Detailed description

Product Advantages

Solid Insulation

Shielded layer of conductive material makes the surface at earth potential everywhere; it is accidently touchable providing safety features for operator. This shielded solid insulated switchgear, which is completely solid insulated, has entire circuit insulated by epoxy and silicon rubber, leaves no live parts in free air; given switchgear less affection of dirt, humidity and pollutions etc.; requires less necessity for maintenance. Each phase is selfcontained into single epoxy block, significantly reducing phase to phase discharge and risks of internal arc fault.

Modular architecture

Modular architecture enables reduction of switchgear dimensions Dimensions of Solid Insulated Switchgear : 700 × 2000 × 1150 it is only 1/6 of traditional air insulated type ie KYN61.

Optimized Electric Field

Computing technology facilitate optimal design of electric field and isolation.

Safety

Sealed electrified body IP67. Inner cone cable terminal to improve the connection reliability

Extreme Environment Application

Suitable for cold, high altitude, humidity, corrosion, lowland and explosion-proof area.

All Operating Condition Environment

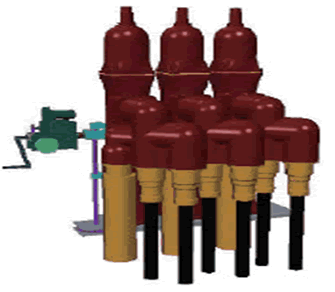

Ambient temperature: -50 ℃ ~ +70 ℃ ; Altitude: ≤ 5500 m Internal and external arcing test report (switches, bus bar, cable compartment) detection Immersion detection test report Salt spray testing report The circuit breaker is composed of mechanism transmission box and circuit breaker poles.

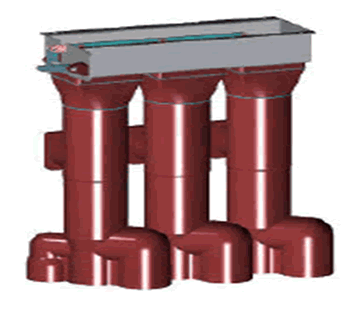

Earthing /Disconnecting switch assembly	There are three internal cone sockets in the poles, among which the 2# cone is used for installing lightning arrester, and the two 3# cones are used for connecting 630A cables.

Parameters

Module V
Name	Unit	Vacuum Circuit Breaker	Disconnecting Switch	Earthing Switch
Rated Voltage	kV	40.5	40.5	40.5
Arc Quenching		Vacuum
Rated Current	A	1250	1250	1250
Rated Frequency	Hz	50/60	50/60	50/60
Main Circuit Resistance	μΩ	≤120	≤120	≤120
Power Frequency Withstand Voltage(1 min)	kV	118	118	118
Lightning Impulse Withstand Voltage	kV	215	215	215
Rated Short Circuit Breaking Current	kA	31.5
Breaking times	Times	30
Rated Short Circuit Making Current	kA	80
Rated Short Time Withstand Current/Duration	kA/s	31.5/4s	31.5/4s	31.5/4s
Rated Peak Withstand Current	kA	80	80	80
Internal Arcing Test (AFLR level)	kA/s	31.5kA/0.5s (including bus compartment, switch compartment, cable compartment)
Degree of Protection		IP67	IP67	IP67
Mechanical Endurance	Times	10000	3000	3000
