HXGS Solid Insulated Electrical Switchgear, 12KV, 24KV,

Product Description

HXGS Solid Insulated Electrical Switchgear is developed on based of its superior patented technologies such as solid insulation, solid sealed pole, fully-insulated modular busbar, etc, solid insulated ring network cabinet fully meet the ring network and radiation distribution network of various wiring programs.

The intelligent terminal equipment connected to the solid insulated switch unit can monitor and control the real-time situation remotely and ensure intelligent, reliability and flexibility of the distribution network system.

Advanced features

• No SF6 gas inside, avoiding pressure tank designing.

• All live parts are sealed or embedded in the epoxy resin and silicon rubber, fully insulated and wholly enclosed structure, safety protection level: IP67.

• All operating mechanism sealed inside a box, truly maintenance-free.

• Enhanced phase separation design, independent phase insulation to avoid the fault between phases.

• Standard modular design to facilitate unit extension, modification and replacement.

• Switch working position of each phase could be observed independently.

• Safe, smart, environment-friendly, flexible assembly enabled, good performance to apply in special environments.

• Multiple mechanical interlock to achieve 'five-protection' function.

• Complete indoor & outdoor application solution.

Operation conditions

•Ambient temperature:

•Maximum temperature + 70℃

•Minimum temperature - 50℃

•Humidity Level:

•Maximum comparative average humidity

•Daily average ≤ 95%; Monthly average ≤ 90%

•Seismic capacity :Level 8

•Altitude:≤5500 M

•Water submersion test:24 hour water resistance at a pressure of 0.3 bar and voltage of 12 KV.

•Degree of protection:Sealed electrified body IP67

•Fuse tube IP67

•Metal enclosure IP4X

•Busbar:Internal earthed busbar 150 mm2Cu

•Thickness of insulation bushing 12.0 mm

•The diameter of sealed and insulated busbar 28.0 mm

Technial parameters

		Module C	Module F	Module V
		Load Switch	Load Switch + Fuse	Vacuum Circuit Breaker	Disconnector	Earthing Switch
Rated Voltage	kV	12	12	12	12	12
Arc Quenching		Vacuum	Vacuum	Vacuum
Rated Current	A	630	125	630/1250	630/1250	630/1250
Rated Frequency	Hz	50	50	50	50	50
Main Circuit Resistance	μΩ	≤120	300 Note1	≤120
Power Frequency Withstand Voltage Between Phases, Phase to earth/open contacts	kV	42/48	42/48	42/48	42/48	42/48
Lightning Impulse Withstand Voltage Between Phases, Phase to earth/open contacts	kV	75/85	75/85	75/85	75/85	75/85
Rated Short-circuit Breaking Current	kA		31.5 Note2	20/25/31.5
Rated Short-circuit Breaking Times	times			30
Rated Short-circuit Making Current	kA	50		50/63
Rated Short-circuit Making Times	times	5		5
Rated Short-time Withstand Current	kA/4s	20		20/25	20/25	20/25
Rated Peak Withstand Current	kA	50		50/63	50/63	50/63Out
Internal Arc Test(AFLR)	KA/s	20KA/0.5s (Include busbar room, switch room, cable tank)
Partial Discharge	pC	≤5	≤5	≤5
IP Rating		IP67	IP67	IP67
Mechanical Endurance	times	10000	10000	10000	3000	3000

Structure and dimensions

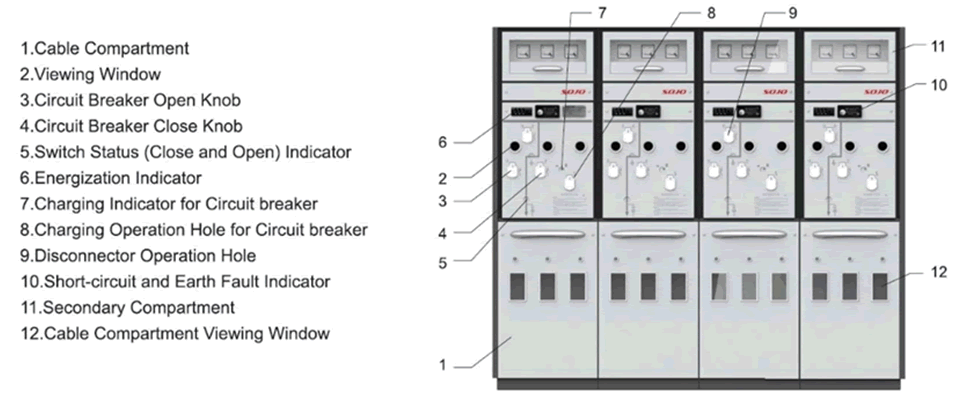

--- Structure Diagram

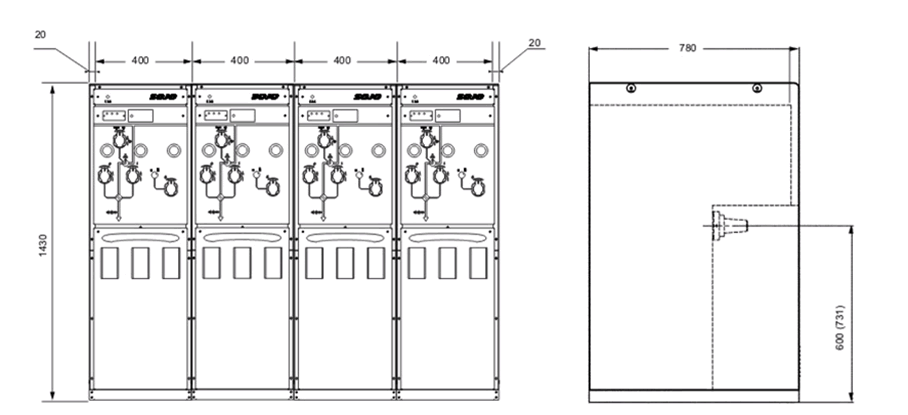

---- Dimensions
