10kv~36kv Cast Resin Distribution Power Dry Type Transformer

Product Specification Amorphous Alloy Epoxy Resin Casting Dry-Type Distribution Transformer (10kV Class 250~2500kVA) with the latest technology and special materials, the amorphous alloy epoxy resin casting dry-type transformer is developed and desig

Published in2018-08-17

5943 Views

Detailed description

Product Specification

Amorphous Alloy Epoxy Resin Casting Dry-Type Distribution Transformer (10kV Class 250~2500kVA) with the latest technology and special materials, the amorphous alloy epoxy resin casting dry-type transformer is developed and designed with the purpose to save power energy. It features low loss, low noise and high energy efficiency.

Special Features:

Amorphous alloy is a new type of material with high magnetic conductivity and energy-saving performance. With the rapid quenching solidification production process, the metal atoms are disordered and arranged in non-crystal way. It is different from the crystal structure of tradition silicon steel and is much easier to be magnetized and demagnetized. Typical amorphous alloy steel sheet contains 80% iron, while the other ingredients are boron and silicon. The thickness of amorphous alloy steel sheet is very small, only 20 to 30um, less than 1/10 thickness of traditional silicon steel sheet. The characteristics of amorphous alloy core are as follows: high saturation magnetic induction intensity, low-loss (20% ~ 30% of traditional silicon steel sheet), low coercive force, low excitation current and high thermal-stability.

On the basis of amorphous alloy's special characteristics, Pearl designs the new type of dry-type transformer with three-phase five-limb wound core structure and fastened with thin boards and frames. The HV winding adopts sectional multi-layer cylindrical winding structure and LV winding adopts foil winding structure. The product features energy-conservation, low loss, great anti-short circuit capability, low partial discharge and low noise. Pearl has successfully developed the largest power amorphous alloy dry-type transformer (SCBH15-2000/10), which has passed all routine tests, type tests and special tests at one time by China National Transformer Quality Supervision Testing Center. Pearl's research and production technology have reached the world-leading level at home and abroad.

Special Features
1, Low loss, especially the no-load loss, more than 70% lower than that of traditional silicon steel materials. Therefore, it is a energy-conservation product..
2, Low noise, low partial discharge, high reliability, excellent dynamic thermal stability and high anti-lighting impulse capability.
3, HV winding being casted with epoxy resin at vacuum state with pressure, resulting in much excellent performance.
4, Simulation analyzing being used during the core mould design, to avoid cavity resonance and reduce noise level. Lighting impulse wave simulation is carried out for HV windings, to greatly improve product's anti-lightning impulse capability.

Other Advantages
SCBH15 series amorphous alloydry type transformer is a new type energy-saving product. It has not only inherited the advantages of traditional epoxy resin casting dry-type transformer, it also has the following additional advantages.
1, Self-extinguishing and inflaming retarding, fire-proof and explosion-proof, pollution-free and no toxic gas being generated.
2, Excellent damp-proof performance, capable of working under 100% relative humidity and other harsh conditions, with no damp-removing measures needed.
3, Thin resin structure realizes chap-free surface and excellent heat-dispersion performance.
4, Great overload capability, capable of operating continuously under 110% overload conditions and in case of air forced cooling, operating continuously under150% overload conditions.
5, Nice appearance, small-size, less installation space occupation and low engineering cost.
6, Each performance index and technical specification excels those specified in China GB, international IEC or industrial standards.

Core
Through the "three-phase five-limb" structure, frame structure and the rational design, the core is protected to prevent the core from being affected by externally applied forces and thus to ensure its no-load performance. During core mould designing, computer simulation analysis is carried out for precisely calculating the vibration frequency and scale, thus to avoid cavity resonance produced by core structure during operation. During production, special vibration-reducing and noise-decreasing materials are used. All these measures are for reducing the transformer's noise during operation.

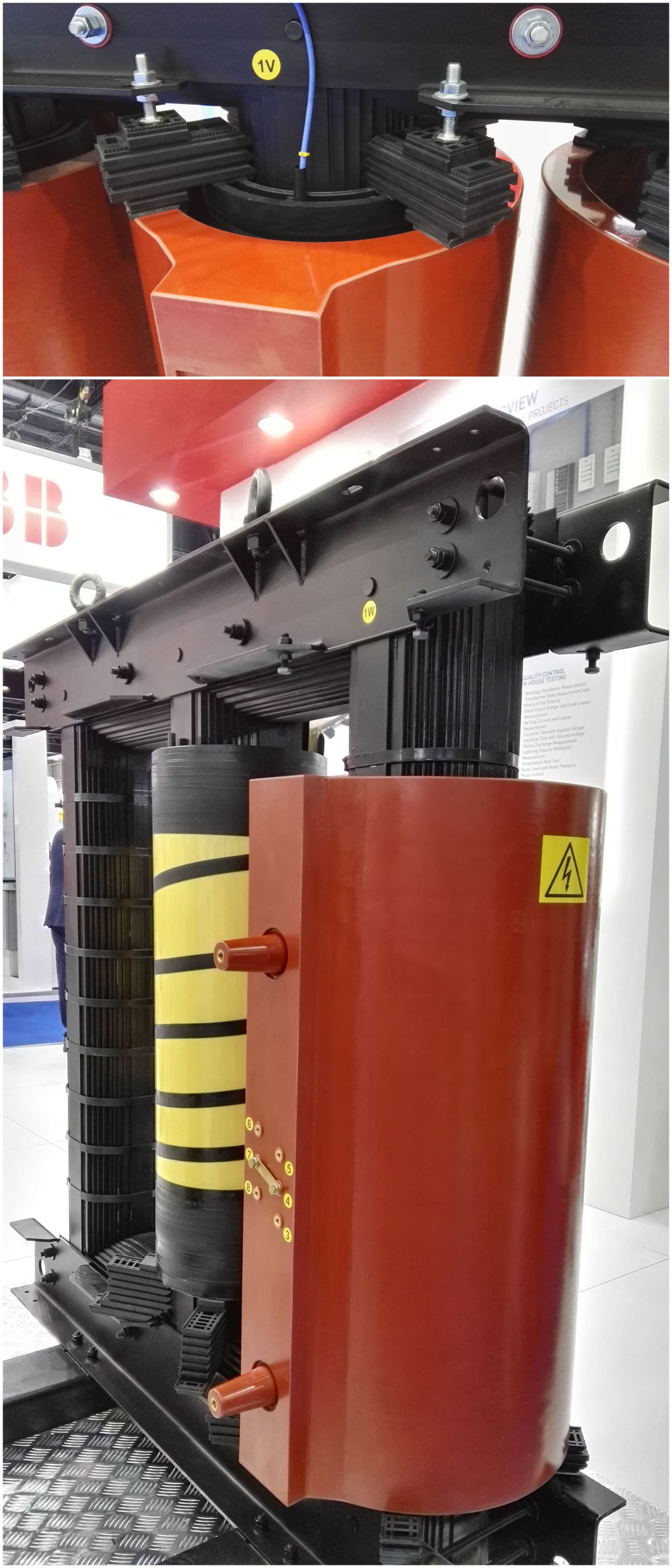

HV winding
HV winding is manufactured with high quality copper wire, reinforced with glass fiber and being casted with epoxy resin at vacuum state with pressure, having the resin fully impregnated into the coils in the most professional imported equipment. Therefore, product's partial discharge is especially low, for example, transformer of 10kV-level has only a partial discharge less than 5 pC. During the HV winding design, rational structure is adopted to improve the electric distribution. With the lighting impulse wave simulation calculation and analysis being carried out through special auxiliary computer software, product's anti-lightning impulse capacity is greatly improved.

LV winding
LVwinding (with the rated power equal to or higher than 200kVA) is manufactured with high quality foil conductor, resulting in excellent ampere-turn balance, low transverse magnetic flux leakage and higher anti-short circuit capability. By designing reasonable air conduit in the windings to increase the heat-dispersion surface, transformer's temperature rise is effectively controlled and the overload capacity is greatly improved.

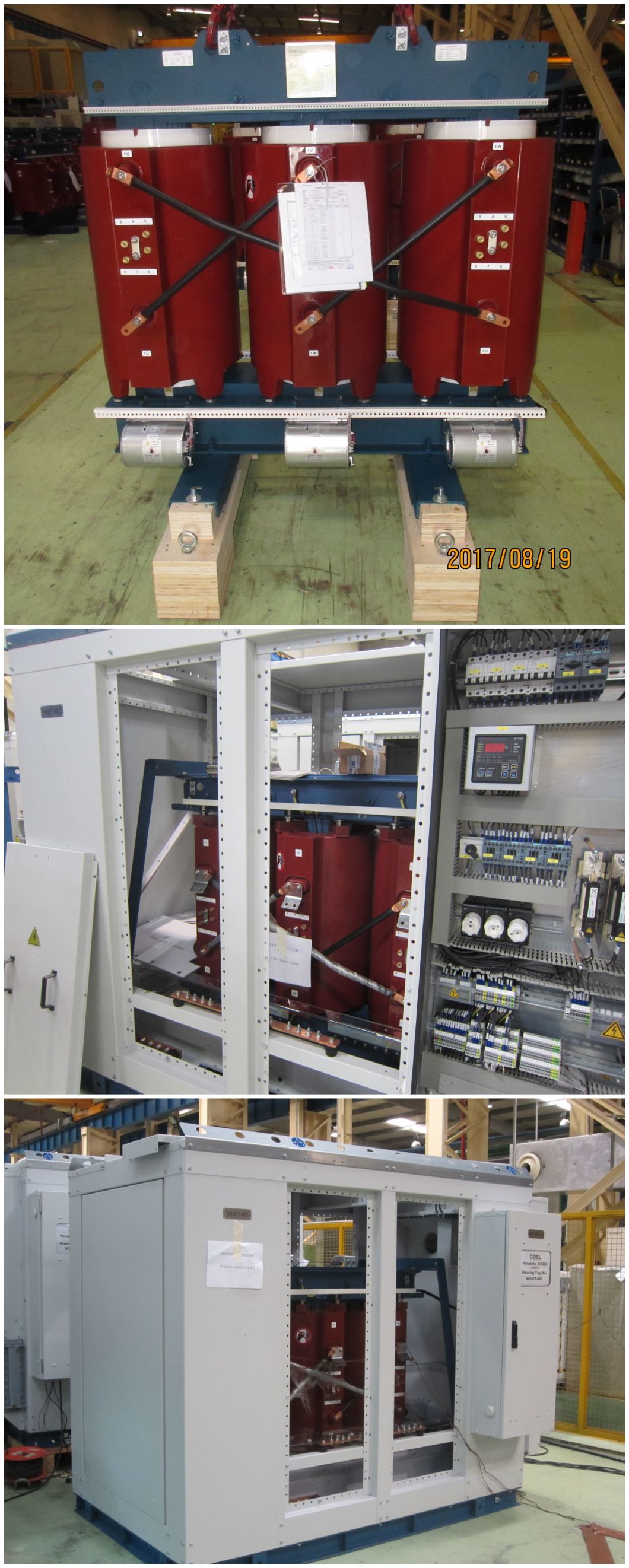

Protective enclosure
Attractive and wearing-resistant protective enclosures are available to provide additional protection for transformer, and the protection level could be IP20, IP23 or higher. The material is stainless steel plate, aluminum alloy plate and other suitable materials. IP20 enclosure provides protection against the entrance of foreign objects with diameterexceeding12mm and could withstand accidental shock. IP23 enclosure, in addition to functions of IP20 enclosure, also provides protection against rainfall at a vertical angle of less than 60°. But the IP23 enclosure will reduce cooling capacity of the transformer by about 5%~10%, therefore this must be taken into account when selecting enclosure for the transformer. Cable support is supplied for HV(LV) incoming (outgoing) connections from bottom of enclosure.

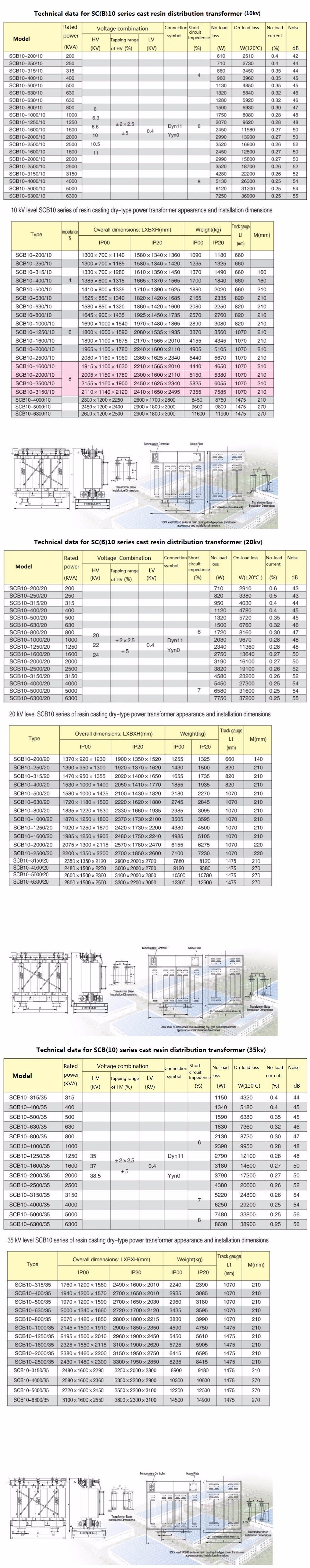

Executed Standards
GB/T 22072, GB1094.11, IEC60076-11, DIN42523
