ZBW(YB)17-10 Series HV./LV. Prefabricated (American type) Substation

ZBW(YB)17-10 Series HV/LV Prefabricated (American type) Substation

ZBW(YB)17-10 Series High-voltage/Low-voltage Prefabricated (American type) Substation is equipped transformer and load switch and HV fuse in the transformer room. The insulating liquid of the transformer is used as insulating media and heat radiating media to the whole product. This kind of substation has the advantages of smaller volume and quality.

ZBW(YB)17-10 Series High-voltage/Low-voltage Prefabricated (American type) Substation is used in 10kV,50Hz/60Hz power distribution system with a transformer rated capacity of 50-1600kVA.It is widely used in outdoor power supply fields such as city, residential zone, factory and mining, hospital, park, oil field, airport, wharf, railway and other temporary facilities, etc.

This product can be uses not only in a close-ring-net for power distribution, but also in transformation power net for terminal power supply.

Features:

1, Voltage class: 6-35kV/0.4KV

2, Capacity range: 30-3150kVA

3, Equipped with 3D iron core transformer

4, Complete set, can penetrate into the load center, improve power supply quality

5, Reduce transmission loss, Shorten the period of power transmission, Low no-load consumption and current

6, Three-phase equilibrium, Low noise, low third harmonic, small size

7, Flexible for installation, Strong adaptability to the environment, convenient installation, reliable

8, Compact structure, Small volume and high mechanical strength, maintanance free

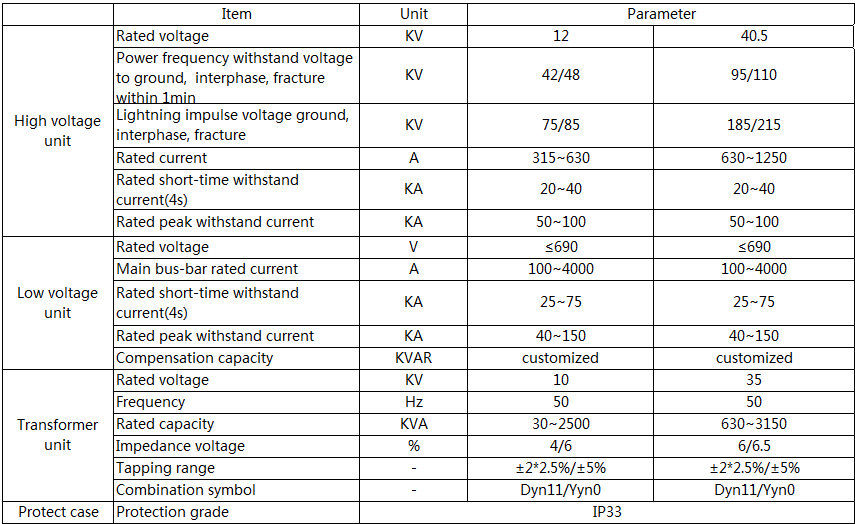

Main technical parameters

Normal Using Conditions
